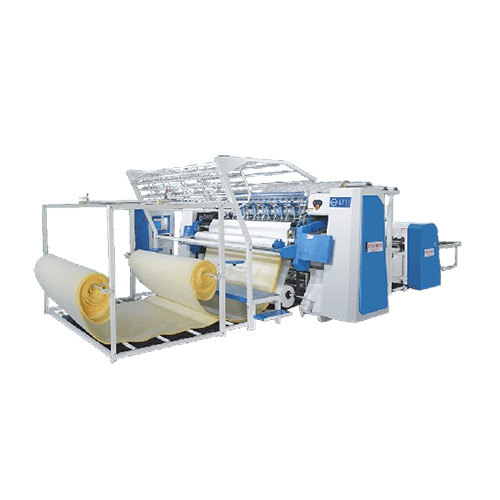

WV15 High Speed Computerized Chain Stitch Multi-needle Quilting Machine

WV15 High Speed Computerized Chain Stitch Multi-needle Quilting Machine Specification

Hook
Double rotary shuttle

Frequency
50 Hz

Product Type
Textile Machinery

Material
Mild steel

Machinery Type
Quilting Machine

Capacity
60-300 m/h (varies with material and patterns)

Voltage
220-240 Volt (v)

Power
5.5 kW

Dimension (L*W*H)
5300 x 1550 x 2000 mm

Weight
3700 kg

Color
Blue & White

Warranty
5 Years

Operating Condition
540C, relative humidity 85%

Pattern Storage
200+ patterns, USB input

Lubrication System
Automatic

Quilting Speed
3501200 RPM

Stitch Length
27 mm adjustable

Safety Feature
Emergency stop and protective covers

Needle Bar Movement Distance
52 mm

Suitable Material
Home textiles, mattress, garments, bedding

Quilting Width
3200 mm

Thread Type
Polyester, cotton, etc.

Control System
Full computerized numeric control

Needle Type
21# or as required

Noise Level
78 dB

Max Quilting Thickness
80 mm

Servo Motor
Equipped for main drive

Display
Large screen, interface in English & Chinese

WV15 High Speed Computerized Chain Stitch Multi-needle Quilting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About WV15 High Speed Computerized Chain Stitch Multi-needle Quilting Machine

The WV15 High-Speed Computerized Chain Stitch Multi-needle Quilting Machine is a state-of-the-art solution designed for precision and efficiency in quilting production. Engineered for high-speed operations, it features advanced computerized control, ensuring consistent and intricate chain stitch patterns across multiple needles. Its robust construction guarantees durability, while the user-friendly interface simplifies operation for seamless integration into your production line. Ideal for creating quilts, mattress covers, and other textile products, the WV15 High-Speed Computerized Chain Stitch Multi-needle Quilting Machinedelivers unmatched productivity and quality. Trust in its performance to elevate your manufacturing capabilities.

Advanced Computerized Quilting Precision

The WV15 machine utilizes state-of-the-art computerized numeric control for intricate and consistent quilting patterns. With a large display interface available in both English and Chinese, operators can easily navigate settings and store more than 200 patterns. Patterns can also be uploaded via USB, allowing flexibility for customization and quick changes in production lines.

Robust Design for Heavy-Duty Operation

Constructed from mild steel and weighing 3700 kg, the WV15 guarantees stability during high-speed quilting tasks. The machine incorporates an automatic lubrication system and double rotary shuttle hook to optimize durability and maintain smooth, low-noise operation ( 78 dB), suitable for continuous work in busy environments.

Versatility for Multiple Materials and Patterns

This quilting machine handles a variety of materials such as cotton and polyester, with a capacity ranging from 60 to 300 meters per hour depending on pattern complexity and fabric type. Adjustable stitch lengths between 2 and 7 mm and needle options ensure adaptability for different project requirementsfrom bedding to garments.

FAQs of WV15 High Speed Computerized Chain Stitch Multi-needle Quilting Machine:

Q: How does the WV15 Quilting Machine ensure precise and consistent stitching?

A: The WV15 utilizes computerized numeric control and servo motor technology, enabling accurate needle bar movements and consistent stitch patterns. Users can set precise parameters for stitch length (2-7 mm), speed (3501200 RPM), and select from over 200 stored quilting patterns for optimal results.

Q: What materials and threads can be used with this quilting machine?

A: The WV15 machine is suitable for various home textile fabrics, mattresses, garments, and bedding. It accommodates thread types like polyester, cotton, and more, offering flexibility to meet diverse production needs.

Q: When should the automated lubrication system be checked or serviced?

A: The automatic lubrication system works continuously during operation but should be inspected during regular maintenance intervals or whenever there is a noticeable change in sound or machine performance to ensure long-term reliability.

Q: Where can this machine be installed, and what are its operating conditions?

A: The WV15 is suitable for textile manufacturing units, bedding factories, and commercial quilting workshops. It operates efficiently in ambient temperatures between 540C with relative humidity up to 85%% and requires a voltage supply of 220-240 Volt at 50 Hz frequency.

Q: What is the process for uploading new quilting patterns to the WV15?

A: New quilting designs can be easily uploaded via the USB input on the machine. The large bilingual interface guides operators through the process, allowing quick pattern changes without technical difficulty.

Q: How does the machine prioritize operator safety during use?

A: The WV15 features protective covers and an emergency stop function, minimizing risk during operation. These safety enhancements provide immediate response in case of anomalies and safeguard against accidental contact with moving parts.

Q: What are the key benefits of choosing the WV15 for production?

A: Key advantages include high-speed, high-capacity quilting, extensive pattern storage, adaptability for different materials and threads, robust design, automated maintenance features, and superior safety protectionsall backed by a comprehensive 5-year warranty.
